Laser Cutting, CNC Bending & Sheet Metal Fabrication Services in Pune

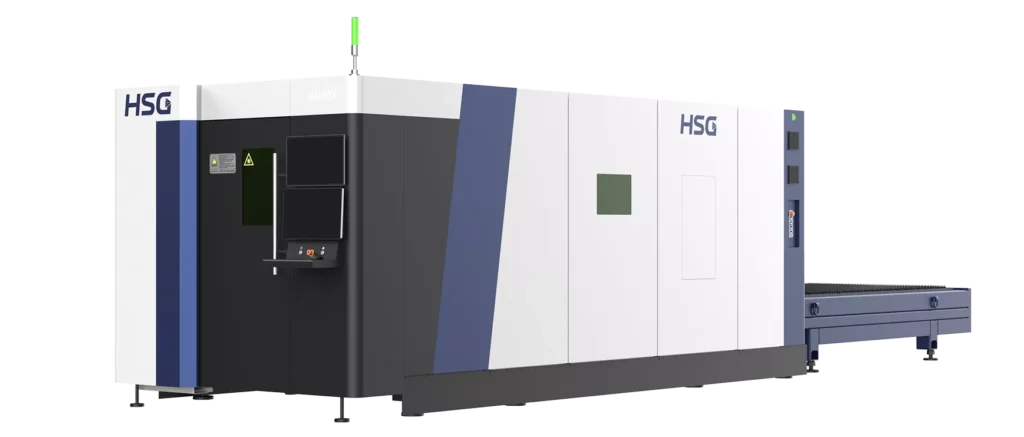

At Nikhil Engineering Works, we harness the power and precision of our HSG 6 kW Fiber Laser Cutting Machine to deliver world-class laser cutting solutions for diverse industrial applications. Built for speed, accuracy, and versatility, this advanced laser system enables us to handle a broad range of materials and thicknesses with exceptional quality and reliability.
Typical Thickness Capabilities
Material Recommended Cutting Range
Mild/Carbon Steel Up to 30 mm
Stainless Steel Up to 20 mm
Aluminum Up to 12–16 mm
Copper & Brass Up to 10–12 mm
30+ Years
Experience
Decades of manufacturing experience delivering reliable and consistent engineering solutions.
Why Choose Our HSG 6 kW Laser Cutting
- Precision Engineering: Every part is manufactured to exact specifications with minimal tolerances.
- High Throughput: Ideal for both prototype jobs and high-volume production.
- Quality Assurance: Consistent performance backed by stringent inspection and quality checks.
- Flexible Solutions: Custom cutting profiles, complex shapes, and intricate designs handled expertly.
Key Capabilities – HSG 6 kW Fiber Laser
- High-Power Cutting: Efficient processing of medium to heavy gauge materials.
- Precision & Accuracy: Tight tolerances with clean, burr-free edges.
- Material Versatility: Carbon Steel, Mild Steel, Stainless Steel, Aluminum, Copper & Brass*.
- Wide Sheet Compatibility: Handles standard and large-format sheets.
- High-Speed Production: Faster turnaround for bulk orders.
- Low Heat Affected Zone: Minimal distortion and superior edge quality.
- CAD/CAM Integration: Optimized nesting for maximum material utilization.

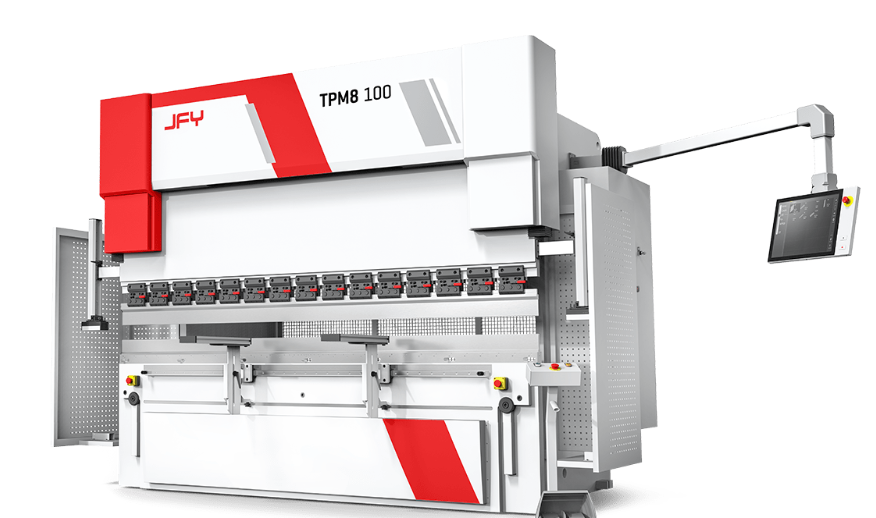

Advanced CNC Bending Facility – JFY TPM 225/3100 (7 Axis)
To strengthen our in-house fabrication capabilities, Nikhil Engineering Works is equipped with a high-performance JFY TPM 225/3100 (4+1) CNC Press Brake, built with proven TRUMPF technology. This machine allows us to deliver precise, repeatable, and high-strength bends for a wide range of sheet metal components across industries.
Technical Specifications
- Model: TPM 225/3100 (7 Axis)
- Maximum Bending Force: 225 Ton (2250 kN)
- Maximum Bending Length: 3100 mm
- Axis Configuration: 7 (Y1, Y2, X, R + Automatic Crowning)
- Controller: TJS-90T with advanced 3D simulation
Key Capabilities
High Tonnage Capacity: Capable of bending thick and heavy-gauge materials with consistent accuracy.
Long-Length Bending: 3100 mm bed length enables fabrication of large structural and industrial components.
Multi-Axis Precision Control: Independent Y1 & Y2 axis ensures perfect ram parallelism, delivering accurate bend angles throughout the full length.
Automatic Crowning System: Compensates for deflection, ensuring uniform bend results even on long parts.
3D Simulation with TJS-90T Controller:
- Offline programming
- Collision detection
- Step-by-step bend sequencing
- Reduced trial runs and material wastage
Complex & Multi-Step Bending: Suitable for intricate geometries and tight tolerance applications.
Fast Setup & Repeatability: Ideal for both prototype development and high-volume production runs.
Why This Strengthens Our Manufacturing
By combining our high-power fiber laser cutting with this advanced CNC press brake, we offer complete in-house sheet metal processing — from precision cutting to accurate forming — ensuring:
- Better dimensional control
- Faster project turnaround
- Reduced dependency on external vendors
- Higher quality consistency
- Cost-effective production solutions
Our JFY CNC bending facility reflects our focus on investing in modern technology to deliver components that meet stringent ind

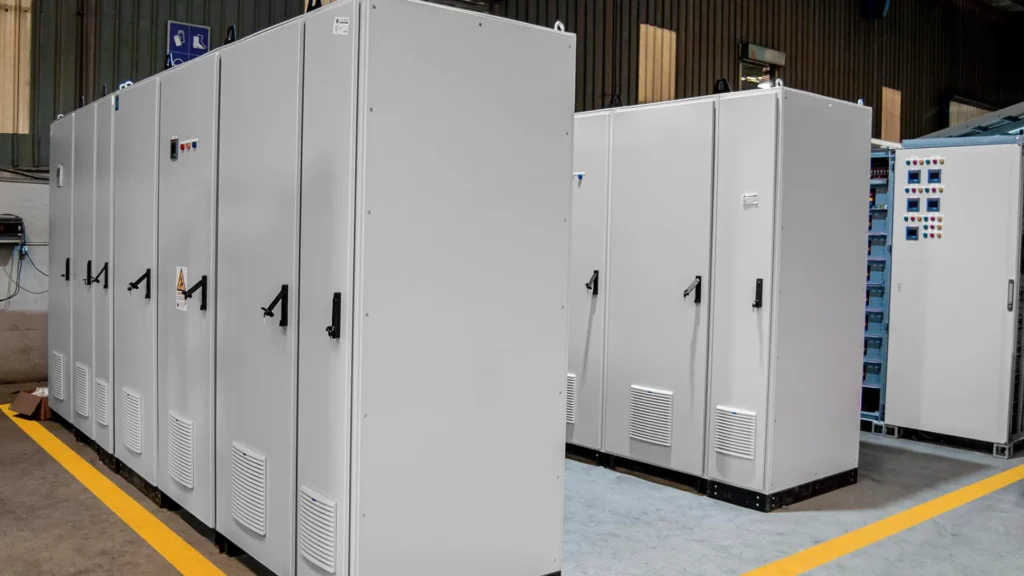

Cabinate Manufaturing
At Nikhil Engineering Works, we provide a complete in-house solution for industrial and electrical cabinet manufacturing — from precision cutting to final welded assembly. Our facility is equipped with the HSG Laser 6 kW Fiber Laser Cutting Machine for accurate, high-speed, and clean cutting of cabinet components, supported by the JFY 225 Ton CNC Press Brake (3100 mm bending length) for precise and consistent multi-axis bending of panels, doors, and structural frames.
To ensure structural strength and premium finish, we use advanced laser welding technology that produces smooth, high-strength weld joints with minimal distortion. With an IBR-approved welder in our team, we maintain certified and reliable welding quality wherever required. Our fully integrated setup allows us to control quality at every stage and deliver cabinets that meet industrial standards with durability and accuracy.
Why Customers Prefer Us
✔ Complete in-house cutting, bending, and welding solution
✔ Accurate fit and perfect alignment of doors and panels
✔ Strong, durable cabinet structures with certified welding
✔ Clean and professional finish with minimal rework
✔ Faster delivery with no outsourcing delays
✔ Single-point responsibility and consistent batch quality
Built with Precision. Delivered with Commitment.
Industrial enclosures and panels
Fabricated parts for assemblies and sub-assemblies
